In keeping with our values, ANIMA's design variations / responses are made from South African timber, a naturally-occurring and sustainable raw material.
Cross-laminated timber (CLT) is a wooden panel comprising three or five sections of solid timber that are cross-directionally adhered under pressure. The panel acts with exceptional strength, dimensional stability, and rigidity. It is lightweight yet very strong, with excellent acoustic, fire and thermal performance.

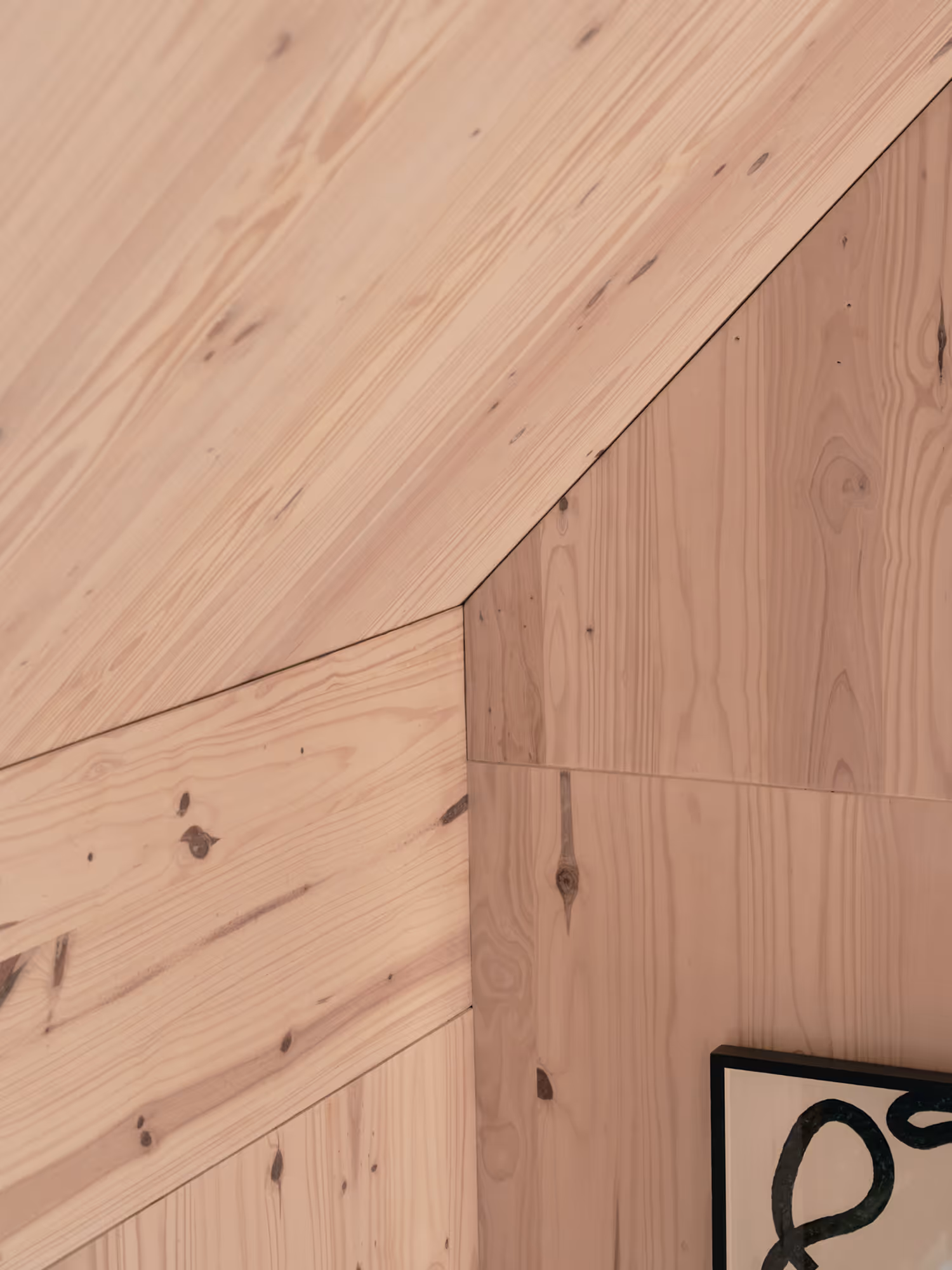

We value its contribution to the construction industry due to its precision and integrity as a structural element and internal finish. Grade A-selected timbers are used on the interior of the panel, removing the need for plasterboard and painted walls and ceilings.
CLT is also quick and easy to install, generating almost no waste on site and requiring a small construction team. It offers design flexibility, very predictable construction times and a low environmental impact.
Highly load-bearing building material
Excellent dimensional stability and size accuracy
Very good thermal insulation and heat protection
Low-energy house standards can be optimally acheived
Ecological building material made of renewable raw material
Durable construction methods that retain value
Building product that stores CO2, hence climate-neautral construction
High efficient product with low primary energy demand
Ready-to-assemble trimmed components are delivered directly to the construction site
Large format components minimise the assembly time and hence the construction costs
Dry construction method, hence rapid erection and soon ready for occupancy
Assembly-friendly
Selection range of materiality and planning freedom within each unit
Customisation of building façade elements and openings
Quality-controlled production, continuous internal and external checks
Industry prefabricated construction elements
Ideal building material for adding storeys due to its specific weight
CLT panels are not a cladding material and are not designed to be exposed to the exterior environment. They are a moisture sensitive structural assembly and required protection from the elements.
Our panels are protected utilising a highly breathable membrane that envelopes the entire home. The membranes are water-resistant but vapour permeable which means that they can protect the building from water ingress while releasing any surplus moisture vapour from the timber back into the outside air. They optimise wind tightness by limiting the unconditional passage of air to protect the structure from the entry of cold draughts in winter or hot draughts in summer. Overlaps and end-junctions are taped and sealed off in line with manufacture’s recommendations and robust detailing.
It is highly advisable that a durable cladding system, rainscreen drainage and ventilation cavity is specified and installed. There are a range of finishes available for selection, to suit your and your project requirements.
Interior finish and insulation if required by the design (optional)
Cross-laminated timber (CLT) panel
Exterior rigid insulation (optional)
Highly breathable waterproofing membrane
Timber battens and rain-screen drainage and ventilation cavity
Insect mesh at ventilation slots
Selected finish on counter cladding system (see range of finishes available for selection)
Ash, Larch or reclaimed Oregon Pine timber shingles to both wall and roof.
Pine thermowood, saligna or larch tongue and groove boards in either horizontal or vertical format.
Pine thermowood Profiles available on request.
Solid timber with wax emulsion finish for durability. Colours available on request.
Aluminium, Zinc-alum or Zinc metal sheeting to corrugated or standing seam profile. To both wall and roof. Colours available on request.
Suggest your own cladding and let the site determine the response. Would you consider using a reclaimed or naturally growing material..?
